Lumatek - Digital Ballast | Dimmable MH/HPS

Power

💡 Lumatek Digital Ballast MH/HPS

The Lumatek digital ballasts power MH and HPS lamps with stable output, silent operation, and graduated dimming with Super Lumens mode (+10% on HPS). Designed with micro-control and high-efficiency components, they reduce wasted heat and increase light output.

⚙️ Key features

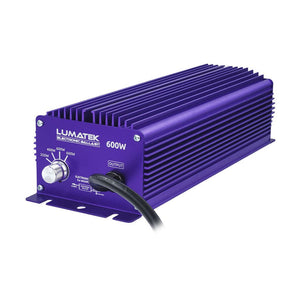

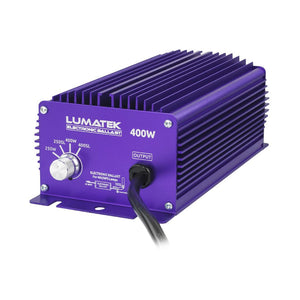

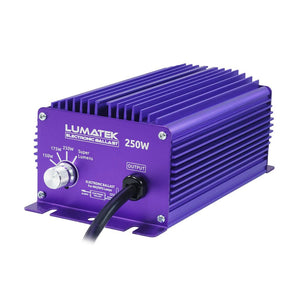

  • Selectable variants: 250W • 400W • 600W
  • Step dimming with Super Lumens (+10% on HPS)
  • Compatible with MH/HPS 240V high-frequency lamps
  • Full protection: short/open circuit, over/under voltage, over-temperature, end of lamp life (EOL), EMI
  • Soft start, random start and re-strike to safeguard the lamp
  • Silent operation, RF-shielding, status LED

🧾 When and how to use

  • Select the suitable wattage (250/400/600W) according to space and growth stage
  • Use the Super Lumens mode only with HPS lamps
  • For MH: set the ballast to the same power as the lamp (avoid boost/dim on MH)
  • Allow the lamp to cool down before restarting after shutdown

🔌 Compatibility and control

  • Power supply: 240V 50/60Hz • Power factor >0.99 • THD <8%
  • The 600W controllable model is compatible with 0–10V controllers (e.g., Lumatek Digital Panel Plus 2.0)

✅ Why choose it

  • Pro reliability with 5-year warranty
  • Higher light output and stability
  • Flexible power management for every growth stage
